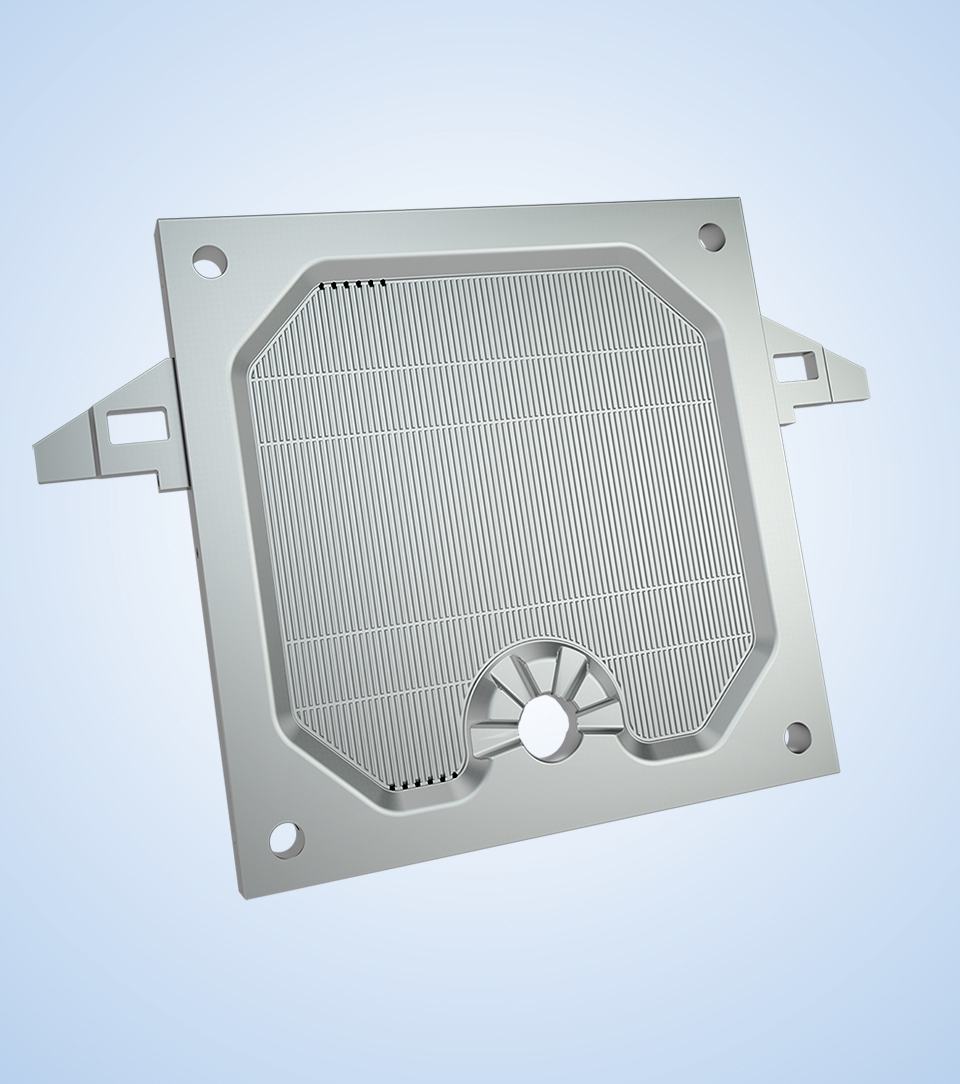

Exchangeable membrane on a carrier plate made of aluminum

This product was manufactured for the fitration of aluminum pigments in combination with white spirit. The exchangeable membrane filter element is also available as a mixed pack with associated chamber plate - also made of aluminum.

General information and advantages

  • Excellent chemical resistance, even with chemically aggressive solvents
  • Carrier plate can be made of any suitable material and customized to suit customer requirements
Format: 1,000 mm
Cake thickness: 40 mm
Filtration pressure: Up to 8 bar
Squeezing pressure: Up to 16 bar
Inlet position: center, off-center
Version: C
Material of carrier plate: Aluminum, Stainless Steel
Membrane material: FKM (fluorocarbon rubber membrane)

Do you need filter elements for use in an explosion-proof application according to ATEX RL/94/9/EG?

LENSER is a certified manufacturer of electrostatically dissipative filter elements of device category 2G for use in explosion protection zone 1.

We confirm the conformity of the filter elements with the ATEX directive by issuing a corresponding certificate.

Data sheets / Operating instructions

All LENSER data sheets and operating manuals are stored in our download area. To view them, please register first.
To the login or registration.
