Filter cloths are diverse in their properties and features – and their fastening techniques are just as varied

First and foremost, the filter press and the application determine which fastening option is best suited. The main focus here is on a secure and non-slip fit, as well as an easy and time-saving installation procedure.

LENSER has a wide range of filter cloths and mounting options. In addition to standard fastenings, we also develop new and innovative solutions. Our aim is to make the work of your employees on the filter press easier all round, also when there is part-changing and installation work to be done.

Standardized cloth fastenings

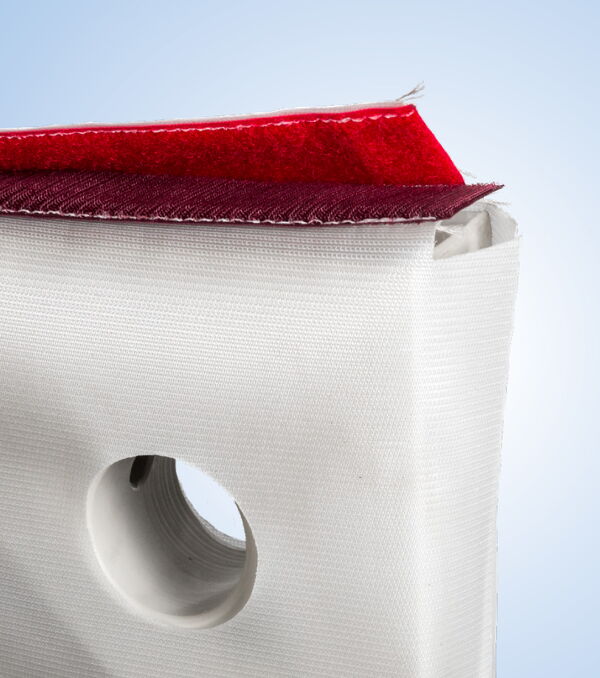

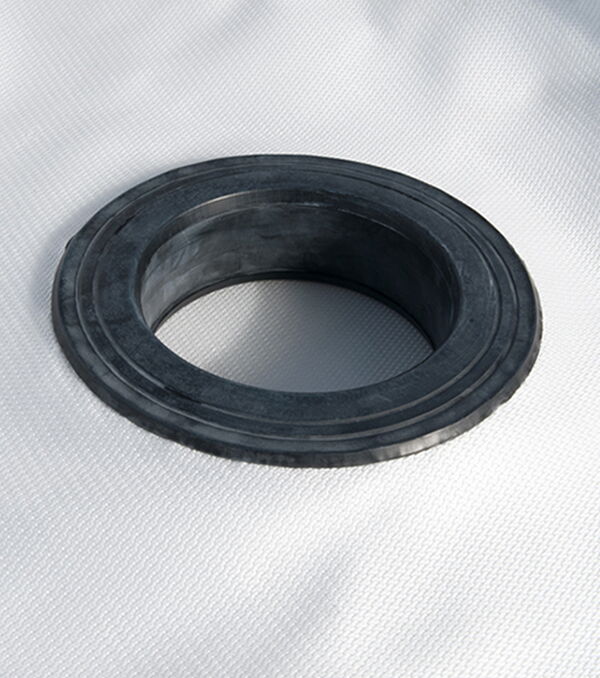

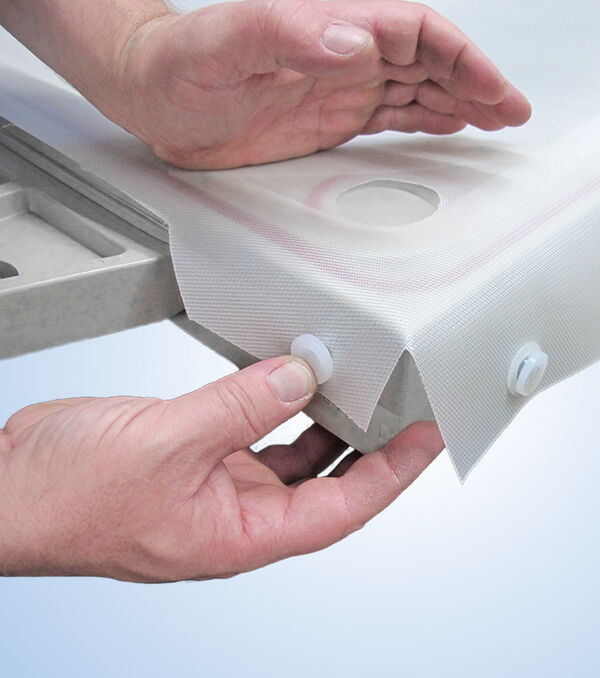

The standardized cloth fastenings are primarily the classic barrel-neck filter cloths. They have small eyelets at the edge that are then secured with cable ties or have a Velcro fastener. Drape-over and single filter cloths are also chosen often in combination with the same or similar fastening devices.

For sealed filter elements, the filter cloth is hammered into a clamping groove. Fitting conventional filter cloths for sealed filter elements is very laborious, so LENSER has optimized this step and launched the LENSER EASY-FIT.

LENSER cloth fastenings

We want to make the cloth mounting process as fast and easy as possible for your staff. That is why we rely entirely on seal technology.

LENSER EASY-FIT

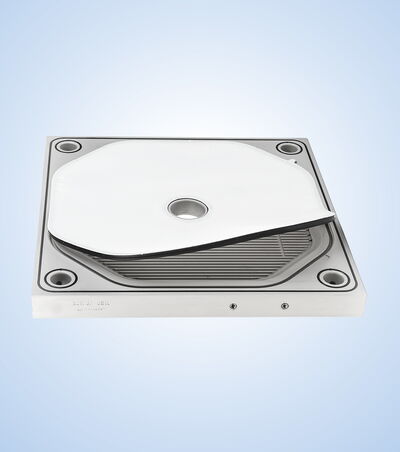

The LENSER EASY-FIT is especially designed for sealed filter elements and is based on the proven technology for gaskets.

While conventional filter cloths for sealed filter elements have a U-groove, our sealed filter elements have an Ω-groove. The elastomer seal of the LENSER EASY-FIT is adapted to this Ω-shape. In this way, the filter medium sits exactly at the same height as the milled edge of the groove and also can no longer slip out of the groove.

Properties:
  • Quick and easy to install
  • Leak-free filtration and safe operation
  • No other fastening materials necessary
  • Elastomer seal can be recycled
  • Suitable for food applications
  • Available in all sizes, also with hydrophobic coating on request


LFC and LFC Hybrid

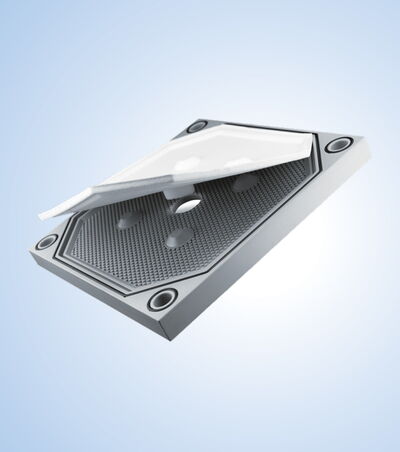

By far the easiest way to change filter cloths – use the LENSER Formed Composite (LFC) for drip-proof filter elements and the LENSER Formed Composite Hybrid (LCF Hybrid) for standard filter elements.

Features of LFC:

  • Plug-in neck consisting of male/female part
  • Sintered fiber construction adapts perfectly to the geometry of the filter element
  • Suitable for low and high pH values
  • High retention of fine particles
  • Robust surface finishing
  • Hydrophobic coating on request

Features of LFC Hybrid:

  • LFC plug-in neck sewn onto proven LENSER PRESS TEX fabric
  • Available as single or drape-over filter cloth
  • Classic fabric fastening by means of eyelets with cable ties or Velcro fastening
  • Can be retrofitted at any time
Standardized cloth fastenings

Standardized cloth fastenings

The standardized cloth fastenings are primarily the classic barrel-neck filter cloths. They have small eyelets at the edge that are then secured with cable ties or have a Velcro fastener. Drape-over and single filter cloths are also chosen often in combination with the same or similar fastening devices.

For sealed filter elements, the filter cloth is hammered into a clamping groove. Fitting conventional filter cloths for sealed filter elements is very laborious, so LENSER has optimized this step and launched the LENSER EASY-FIT.

LENSER cloth fastenings

LENSER cloth fastenings

We want to make the cloth mounting process as fast and easy as possible for your staff. That is why we rely entirely on seal technology.

LENSER EASY-FIT

The LENSER EASY-FIT is especially designed for sealed filter elements and is based on the proven technology for gaskets.

While conventional filter cloths for sealed filter elements have a U-groove, our sealed filter elements have an Ω-groove. The elastomer seal of the LENSER EASY-FIT is adapted to this Ω-shape. In this way, the filter medium sits exactly at the same height as the milled edge of the groove and also can no longer slip out of the groove.

Properties:
  • Quick and easy to install
  • Leak-free filtration and safe operation
  • No other fastening materials necessary
  • Elastomer seal can be recycled
  • Suitable for food applications
  • Available in all sizes, also with hydrophobic coating on request


LFC and LFC Hybrid

By far the easiest way to change filter cloths – use the LENSER Formed Composite (LFC) for drip-proof filter elements and the LENSER Formed Composite Hybrid (LCF Hybrid) for standard filter elements.

Features of LFC:

  • Plug-in neck consisting of male/female part
  • Sintered fiber construction adapts perfectly to the geometry of the filter element
  • Suitable for low and high pH values
  • High retention of fine particles
  • Robust surface finishing
  • Hydrophobic coating on request

Features of LFC Hybrid:

  • LFC plug-in neck sewn onto proven LENSER PRESS TEX fabric
  • Available as single or drape-over filter cloth
  • Classic fabric fastening by means of eyelets with cable ties or Velcro fastening
  • Can be retrofitted at any time

Ask your #FiltrationExpert

Ask your #FiltrationExpert about the appropriate mounting form of your filter media and reduce unnecessary process costs. We are happy to support you with our knowledge and experience from over 50 years of filtration expertise.

For more information on our specially developed cloth fasteners, please visit our product finder.
