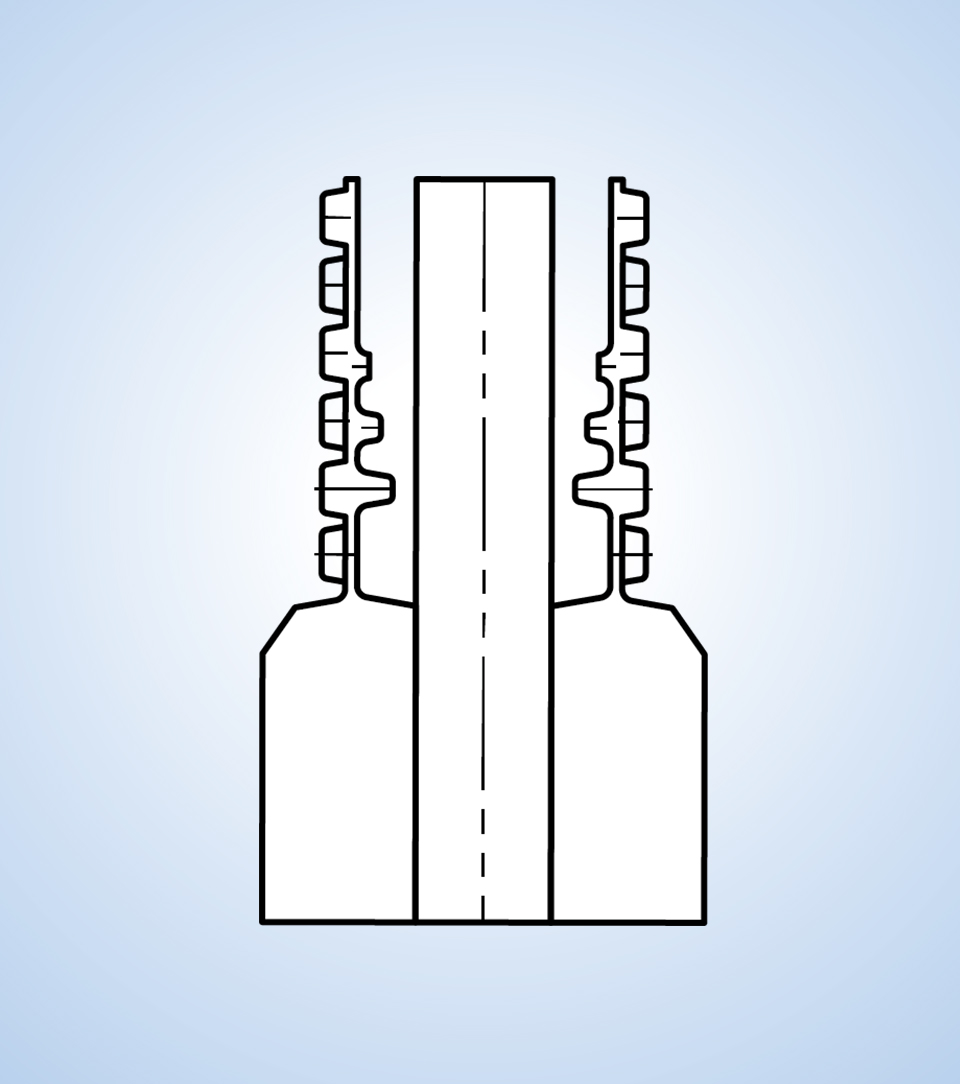

The recessed membrane allows a more uniform cake thickness and a very good washing result.
- Shorter filtration cycles
- Shorter washing times
- Higher dry solids content
- Even cake thickness distribution across filtration area
- Higher throughput rate
- Reduced water consumption
- Reduced air consumption during blow-drying
- Superior cake washing/blowing results
|Format:||From 470 mm to 1,500x2,000 mm|
|Cake thickness:||From 15 mm to 50 mm|
|Filtration pressure:||Up to 8 bar|
|Squeezing pressure:||Up to 16 bar|
|Inlet position:||centre, off-centre, corner, external|
Do you need filter elements for use in an explosion-proof application according to ATEX RL/94/9/EG?
LENSER is a certified manufacturer of electrostatically dissipative filter elements of device category 2G for use in explosion protection zone 1.
We confirm the conformity of the filter elements with the ATEX directive by issuing a corresponding certificate.
Data sheets / Operating instructions
All LENSER data sheets and operating manuals are stored in our download area. To view them, please register first.
To the login or registration.
